The desired end position is in case of moveTo() given as absolute position.The desired end position to move to is set by calls to moveTo() and move().This allows near synchronous start of several steppers for multi axis applications. Command queue can be filled with commands and then started.Those commands are tied to timer ticks aka the CPU frequency! Provide API to each steppers' command queue.No float calculation (poor man float: use log2 representation in range -64.64 with 16bit integer representation and 1/512th resolution).
connected to shift register) and, only esp32 derivates: the direction pins External callback function can be used to drive the enable pins (e.g.Configurable delay between direction change and following step.Direction pins can be shared between motors.Enable pins can be shared between motors.Auto enable mode: stepper motor is enabled before movement and disabled afterwards with configurable delays.Jump start from standstill - configurable by setJumpStart().Linear acceleration increase from/to standstill using cubic speed function - configurable by setLinearAcceleration().Constant acceleration control: In this mode the motor can be controled by acceleration values and with acceleration=0 will keep current speed.speed/acceleration can be varied while stepper is running (call to functions move or moveTo is needed in order to apply the new values).Allows the motor to continuously run in the current direction until stopMove() is called.supports acceleration and deceleration with per stepper max speed/acceleration.fully interrupt/task driven - no periodic function to be called from application loop.Lower limit of 260s per step 16MHz aka one step every four minute (esp32/avr), 198s for sam due.3-pin operation to reduce power dissipation of driver/stepper.
With external callback, even shift register outputs can be usedįastAccelStepper offers the following features:.Stepper will be enabled on pin high or low, as per optional parameter to setEnablePin().With external callback on esp32 derivates, even shift register outputs can be used.Position counting up on direction pin high or low, as per optional parameter to setDirectionPin().This can be any output capable port pin.On esp32 the high time is for slow speed fixed to ~2ms and high speed to 50% duty cycle Step should be done on transition Low to High.esp32: This can be any output capable port pin.On platformio, this can be changed to other triples: 11/12/13 Timer 1, 5/2/3 Timer 3 or 46/45/44 Timer 5 with FAS_TIMER_MODULE setting.
#Arduino stepper motor library driver

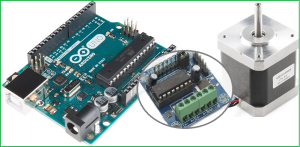

The stepper motors should be connected via a driver IC (like A4988) with a 1, 2 or 3-wire connection: Supported are avr (ATmega 168/328/P, ATmega2560, ATmega32u4), esp32, esp32s2, esp32s3 and atmelsam due. This is a high speed alternative for the AccelStepper library. Check the related issue for the arduino library manager BE AWARE: ARDUINO LIBRARY MANAGER IS BROKEN AND 0.29.x do not show.
